F Series

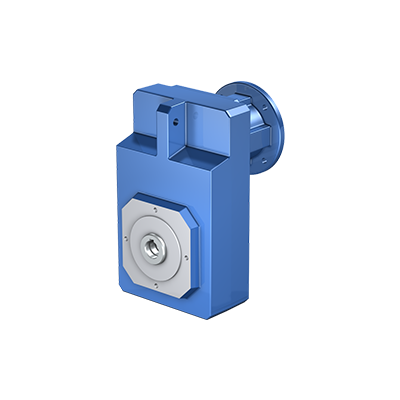

Flat gear unit housing with large shaft-centre distance. Helical gearing. Two backlash versions. Hollow or solid shaft. Short motor adapter with plug-in coupling for the attachment of standard motors and stainless steel motors in accordance with IEC and NEMA-C.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


- Solid shaft with key
- Solid shaft without key
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs


- Pitch circle diameter
- Round flange
- Square flange
- Pitch circle diameter + side fastening
Backlash


- Standard
- Class II
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
- Lubricated for life
- Maintenance-free
MR Motor Adapter


Round motor connection for IEC and NEMAC-C standard motors with choice of couplings:
- Backlash-free plug-in coupling
- Curved tooth coupling
Recommendation Motor


The asynchronous motor is designed for direct mounting.
For further information see Asynchronous Motors

Type

Ratio

Nominal torque on the gear unit output [Nm]

Max. perm. input speed continuous operation [1/min]

F102

4.3 – 140

44 – 120

3500 – 4000

F202

4.7 – 141

48 – 240

3100 – 4000

F203

184 – 552

240

4000

F302

4.6 – 141

92 – 400

3000 – 4000

F303

182 – 551

400

3500 – 4000

F402

4.7 – 140

255 – 700

2700 – 3500

F403

182 – 547

700

3500 – 3800

F602

4.5 – 140

309 – 1100

2500 – 3500

F603

181 – 540

1100

3500
