ZVPE Series

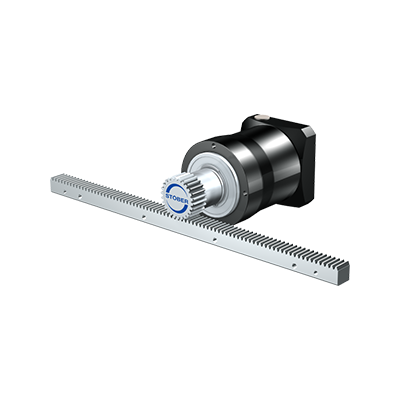

Economical alternative to the P series. Plug-on pinion. Helical gearing. On request: direct motor mounting.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Output Pinion


- Helical gearing
- Gearing quality 7
- Case hardened and ground
- Two attachment positions on the shaft are possible
-- Toothing flush with shaft end (pos. E)
-- Toothing flush with shaft shoulder (pos. S) for higher permissible shear forces
- Backlash-free shaft/hub connection (shrinkpasted and feather key connected)
- Pinion securing mechanism axially with disk and screw (optional)
ZV Output Pinions
Mounting Positions


- Any mounting position.
Lubricants and Maintenance


Gear unit:
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Rack and pinion drive:
- Lubrication of the rack and pinion drive must be carried out by the customer.
- For this purpose, we recommend only the use of high quality synthetic oil based grease of NLGI grade 0.
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type

Module [mm]

Teeth number

Max. perm. acceleration feed force [kN]

Max. feed velocity [m/s]

Linear backlash [μm]

ZV2_PE311

2

16

2

1.1 – 3.6

40

ZV2_PE312

2

16

2

0.11 – 0.89

49

ZV2_PE411

2

20

2.8

1.3 – 4.1

49

ZV2_PE412

2

20

2.8

0.13 – 1

62

ZV2_PE511

2

25

6.3

1.4 – 4.2

62

ZV3_PE511

3

18

6.1

1.5 – 4.5

67

ZV2_PE512

2

25

6.3

0.14 – 1

77

ZV3_PE512

3

18

6.1

0.15 – 1.1

83
